Description

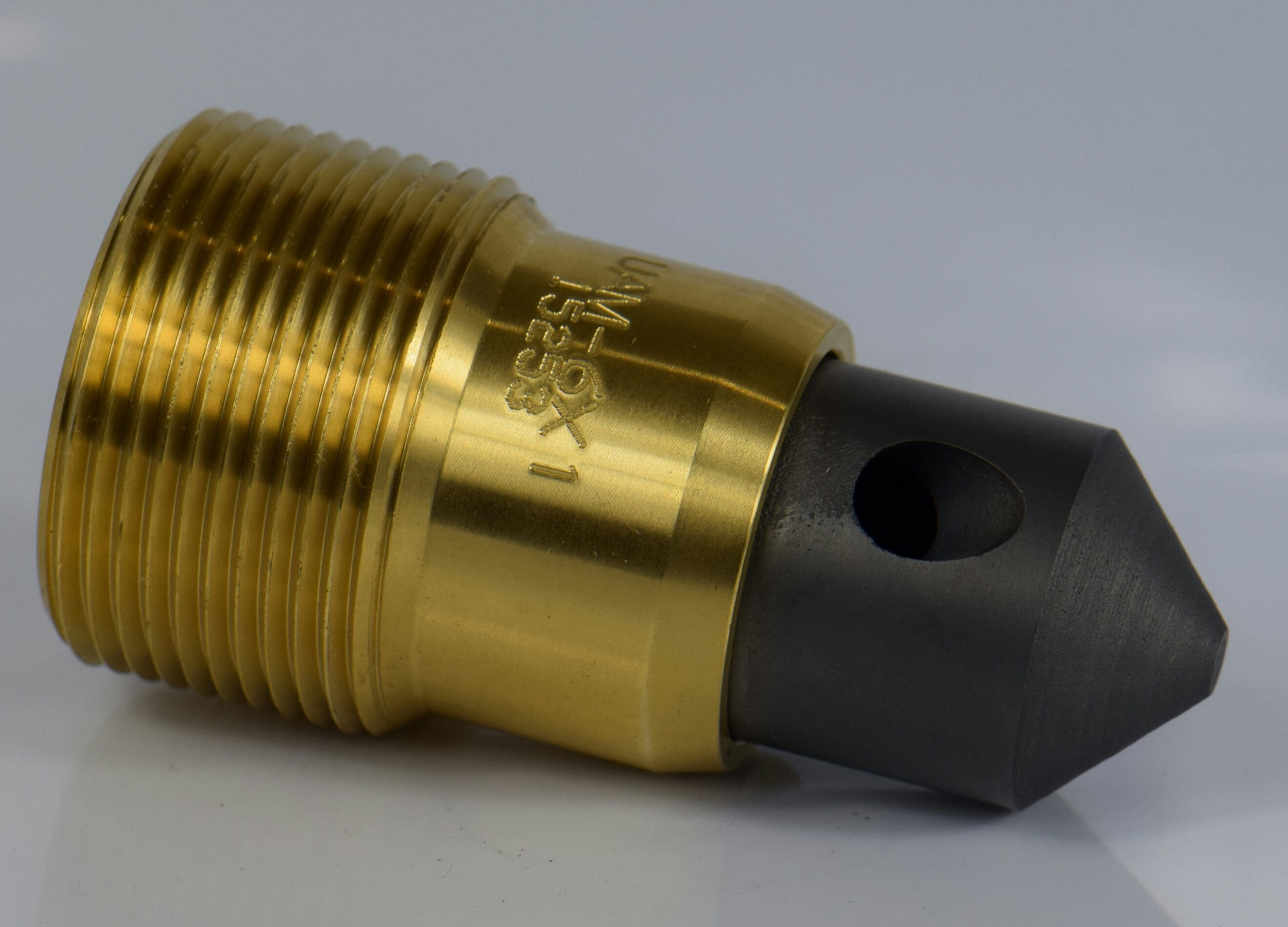

90 degree Angle Nozzle 5 X 1A90
90 degree angle nozzle – one (1) outlet, 5/16″ bore. – brass jacket with 1-1/4″ npsm threads. Angle nozzles are frequently used to clean hard to reach place e.g. inside pipes, tubes & other cylindrical objects, behind angles and pipes.
Tungsten Carbide angle nozzles for sandblasting are available with one, two or three exit ports. Generally, the two and three port angle nozzles are used for blast cleaning inside tubes or U-shaped forms, where abrasive can only be aimed at side walls with an angle nozzle. Another area where carbide angle nozzles are useful is in getting behind angles on bridge work. Some jobs may need a combination of nozzles to reach inside tight angles or partially enclosed areas. Angle Nozzles are available with forward shooting exit ports at approx. 45 degrees, sideways shooting at 90 degrees and reverse angle nozzles with a port that shoots abrasive at approx. 135 degrees. Another useful tool for cleaning hard to reach areas is the Banana EVB-CB4-BC6 nozzle. Our curved nozzle is unique, in that it incorporates a single piece curved carbide liner.
Model: UAM-5X1A90 uses gasket NW-1514
| Inlet inch/mm | Bore inch/mm | Length inch/mm | Outlet | |||
| 25/32 | 19.85 | 5/16″ | 7.94 | 3″ | 76.2 | 1 |
Additional information
| Weight | 1.3625 lbs |
|---|---|
| Dimensions | 3 × 2 × 2 in |
| UNSPC | |
| SKU | UAM-5X1A90 |
