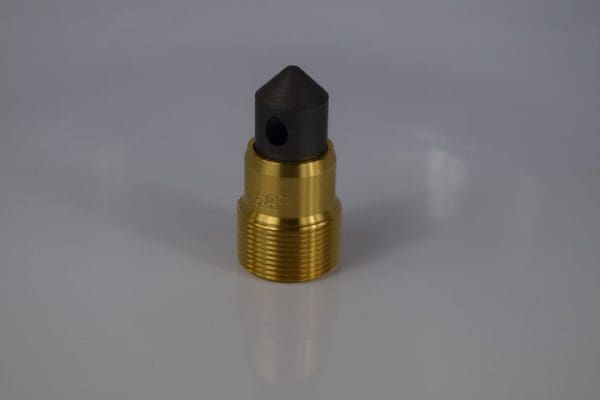

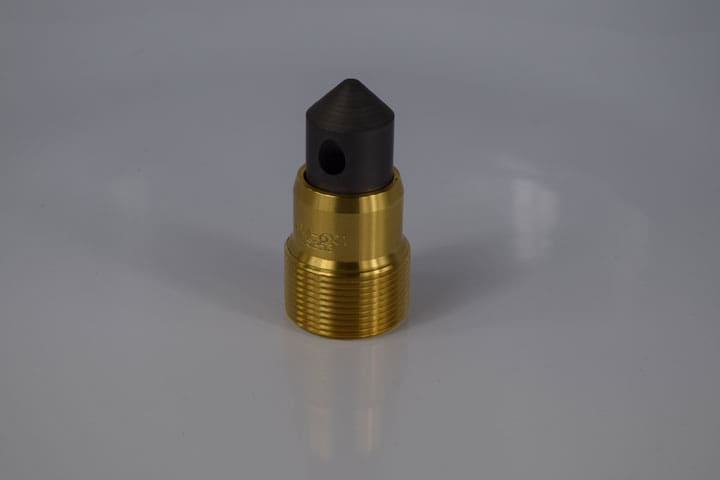

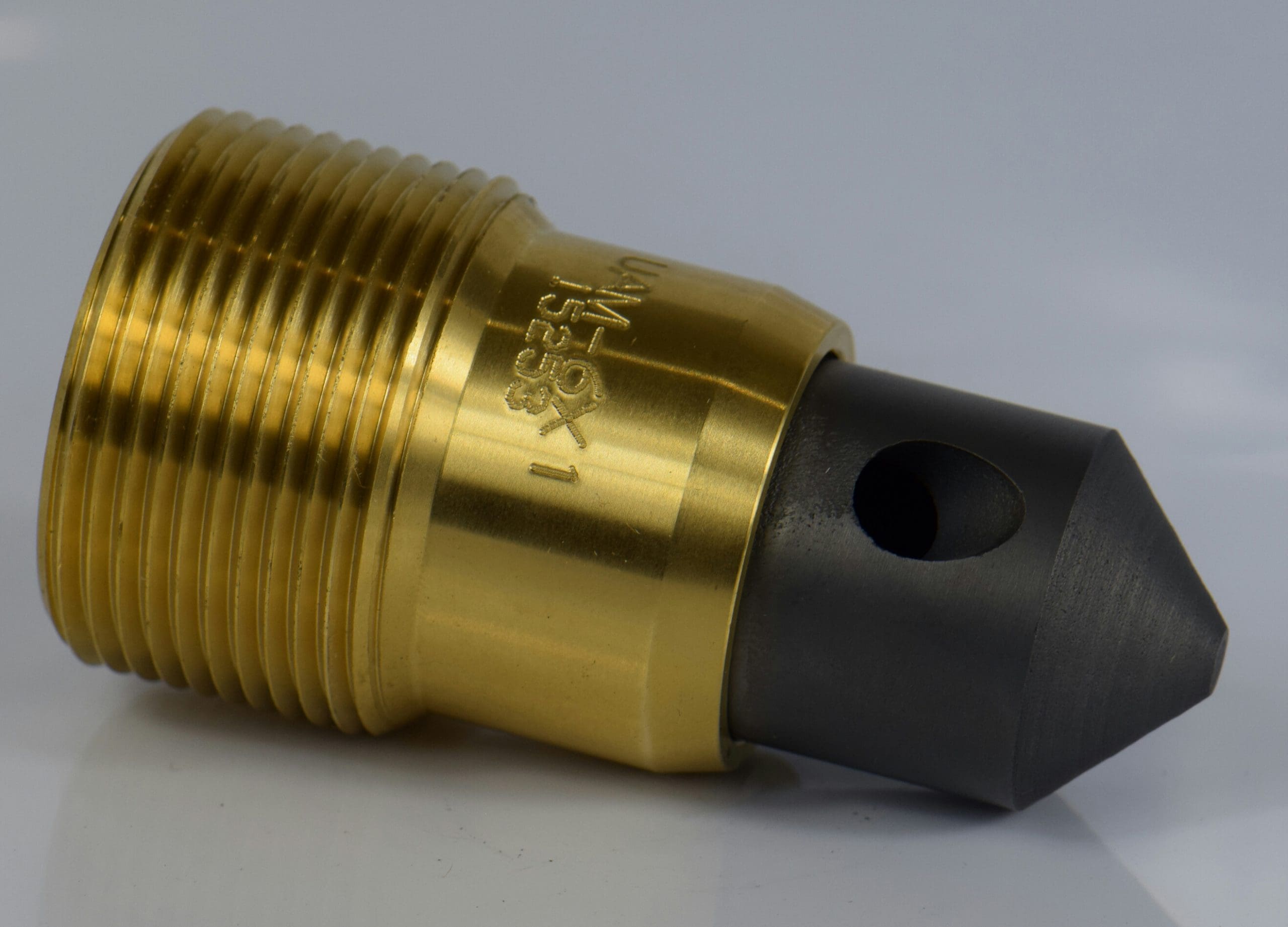

Angle Nozzle UAM-4X3


Tungsten carbide, 45 degree, triple (3) outlet 1/4″ angle nozzle. 1-1/4″ Brass threads

Weight 1.5 lbs
Dimensions 3 × 2 × 2 in


Available on backorder

Add to wishlist Add to compare
SKU: UAM-4X3 Category: Tag:


Angle Nozzle UAM-4X3,  Tungsten carbide 45 degrees forward shooting angle nozzle with three outlets, 1/4″ bore.

Angle nozzle UAM-4X3  has brass jacket with 1-1/4″ npsm threads.  These nozzles are frequently used to clean hard to reach place e.g. inside pipes, tubes & other cylindrical objects, behind angles and pipes.  They  use air in proportion to the number of exits.  UAM-4X3 has 3 exits and will use 3 times the air as a standard # 4 nozzle.  Tungsten carbide nozzles  are not recommended for use with aluminum oxide due to high wear rate.  Largest bore size available from us with three exits is our UAM-6X3, this nozzle has 3/8″ bore.

Angle Nozzles type:

Angle nozzles are available with one, two or three exit ports and with three shooting angle, (1) forward shooting at 45 degrees, (2) Side shooting at 90 degrees and (3) reverse shooting at 135 degrees.  Blast cleaning inside tubes or U-shaped forms with 2 or 3 exit angle nozzles.

Special Angle Nozzles:

Also available are application specific angle nozzles available:  (1) lance style for blast cleaning inside narrow tubes.(2) Curved (Banana) Nozzles.  (3) Mini angle nozzles.



Inlet size: 25/32

Bore: 1/4″

Length: 3″

Outlets: 3

Material: Tungsten carbide

Nozzle Gasket: NW-1514



Additional information

Weight 1.5 lbs
Dimensions 3 × 2 × 2 in
