Angle Nozzle: UAM-8X1A90/50

$220.00

Angle nozzle -UAM-8X1A90/50, Tungsten carbide, 90°single (1) outlet 1/2″ bore, fitted with contractor (2″) aluminum threads

Weight 1 lbs
Dimensions 3 × 3 × 3 in
Nozzle Liner Material

Bore Size Filter

Thread type Filter

SKU UAM-8X1A90/50

Available on backorder

Add to wishlist Add to compare
SKU: UAM-8X1A90/50 Category: Tag:

Description

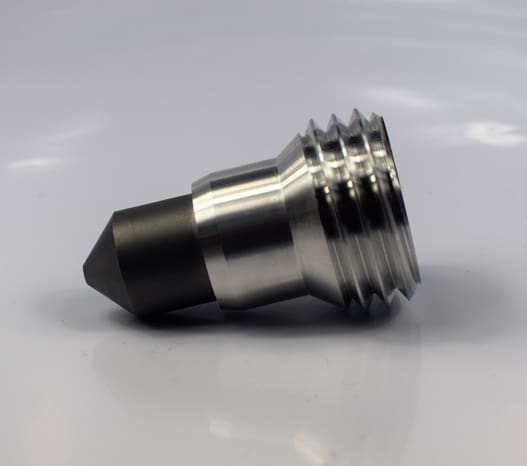

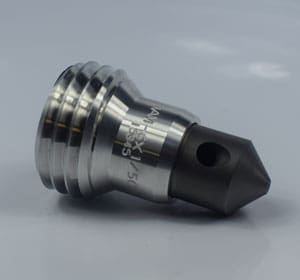

Angle nozzle -UAM-8X1A90/50

Angle nozzle -UAM-8X1A90/50. Tungsten carbide angle nozzle  with one 1/2″ bore exit port.  Armored contractor threads.  Supplied complete with rubber washer NW-3820-50.  Angle nozzles are frequently used to clean hard to reach place e.g. inside pipes, tubes, other cylindrical objects behind angles on bridges. For fine threads then take a look at 45 degrees, UAM-8X1/90



Tungsten Carbide angle nozzles for sandblasting are available with one, two or three exit ports. Generally, the two and three port angle nozzles are used for blast cleaning inside tubes or U-shaped forms, where abrasive can only be aimed at side walls with an angle nozzle. Another area where carbide angle nozzles are useful is in getting behind angles on bridge work. Some jobs may need a combination of nozzles to reach inside tight angles or partially enclosed areas. Angle Nozzles are available with forward shooting exit ports at approx. 45 degrees, sideways shooting at 90 degrees and reverse angle nozzles with a port that shoots abrasive at approx. 135 degrees. Another useful tool for cleaning hard to reach areas is the Banana nozzle.



Specs:

Model: UAM-8X1A90/50

Sku: 3241131

Bore: 1/2″

Outlets: Single

Angle: 90 degree

Material: Tungsten Carbide

Threads: Contractor (Armored aluminum)

Washer: NW-3820-50





Additional information

Weight 1 lbs
Dimensions 3 × 3 × 3 in
