Banana Nozzle thread adapter.

Description

Thread adapter for banana nozzle:

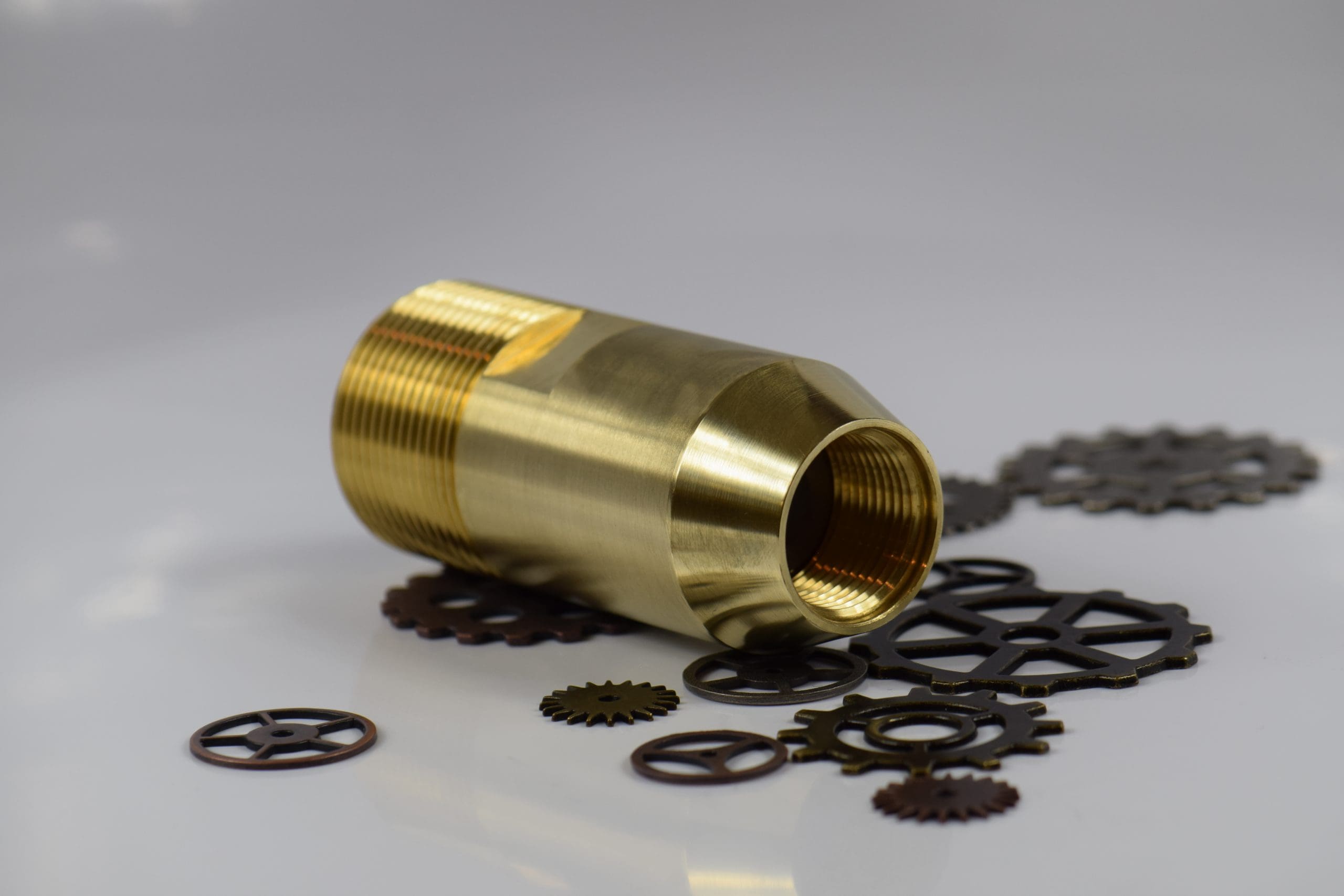

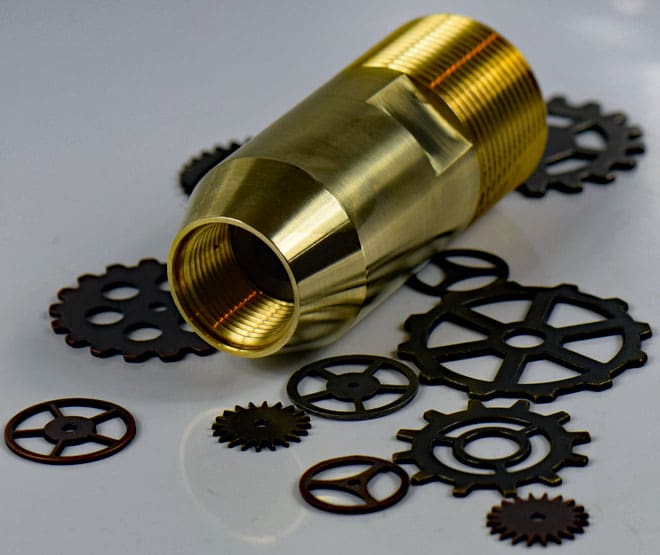

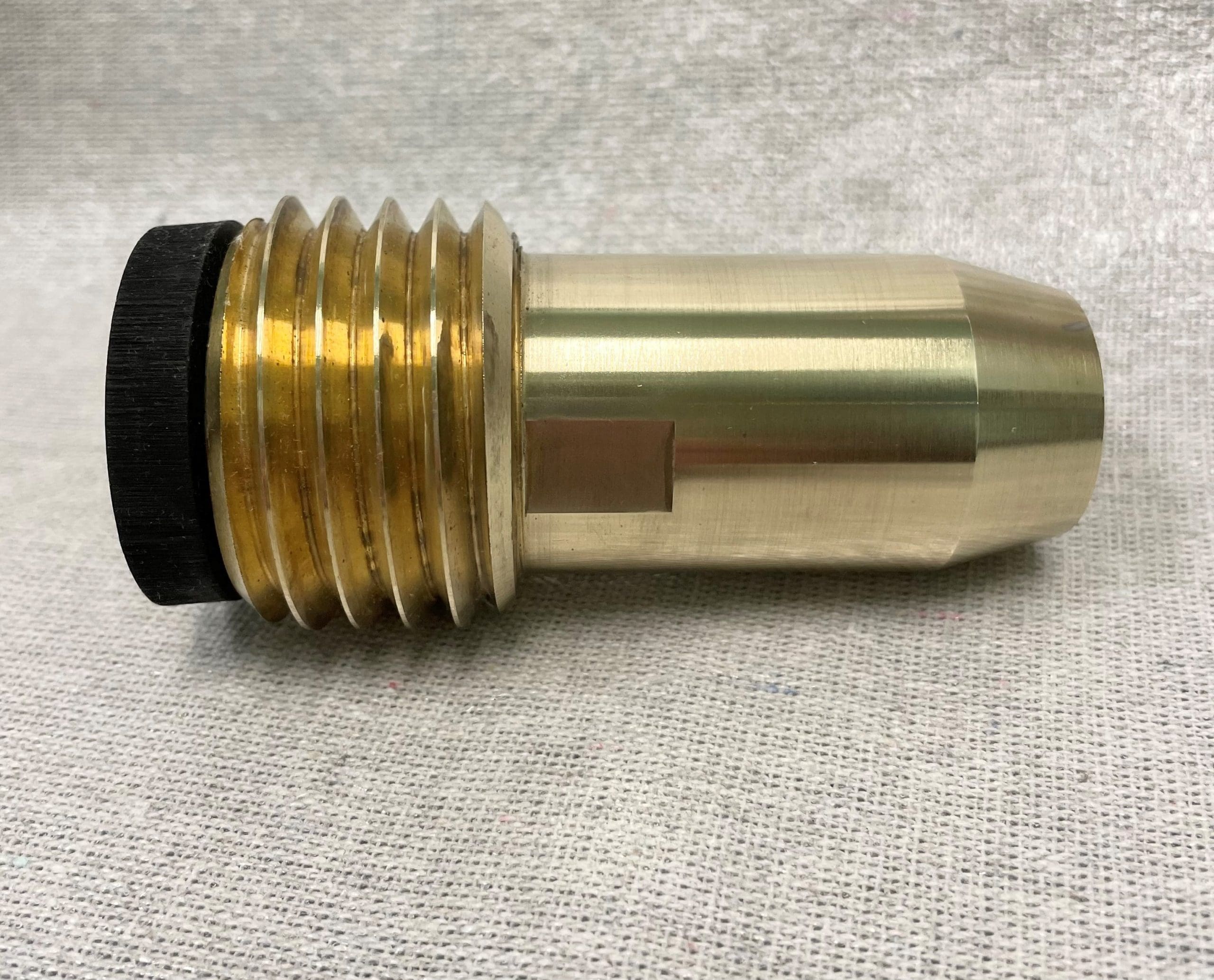

Banana nozzle Thread adapter,  used for adapting  3/4″ NPSM threads to 1-1/4″ NPSM . This carbide lined adapter channels abrasive flow from hose to match entrance size of Banana nozzle or other nozzles with 3/4″ NPSM threads like our ATV or UT nozzles.  Adapter has a heavy duty, straight bore, tungsten carbide liner for funneling abrasive down to entrance size of banana nozzle. Using this adapter is recommended, as it helps with reducing size of abrasive flow to match entrance of the banana nozzle. This is a useful tool to have in your kit in addition to standard angle nozzles.   This adapter can also be used with any 3/4″ NPSM threaded nozzle to convert them to 1-1/4″ NPSM threads.  Also available without tungsten carbide liner.

Useful Information about Good Nozzle Practices

Tips For nozzle Selection:

Choosing best blast cleaning nozzle for sandblasting productively shouldn’t be difficult, when you know your compressors CFM rating and match it with nozzle bore size!

So, you are looking to optimize performance of your blast cleaning system? What should you be looking at first? The simple answer is look at your compressor’s air output and how to use available air to select the best size of the sandblasting nozzle to maximize blast cleaning productivity. Most efficient blast cleaning systems will need sufficient compressed air to supply continually at least 95 to 100 PSI at the blast cleaning nozzle. There are situations where less forceful blast cleaning may be needed using softer abrasives, under these circumstances, a lower nozzle psi might be acceptable.

Specifications:

Material Brass.

Liner: Tungsten Carbide.

Female threads: 3/4″ NPSM

Male Threads: 1-1//4″ NPSM
