HomeTungsten Carbide Sand blast NozzlesTungsten Carbide Blast cleaning nozzle UDLB-7BA

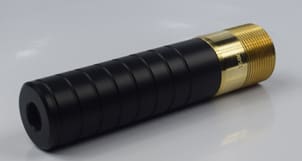

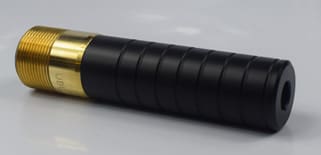

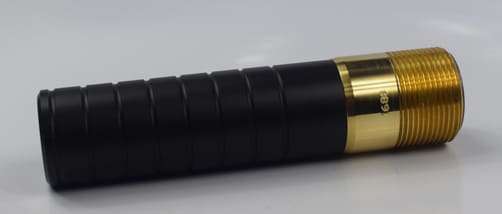

Tungsten Carbide Blast cleaning nozzle UDLB-7BA

$193.00

Carbide sandblasting nozzle UDLB-7BA  with 1″ entry,  3/8″ bore. Venturi nozzle. 1-1/4″ NPSM fine threads Tungsten carbide.

Weight 3 lbs
Dimensions 9 × 3 × 3 in
UNSPC

Brand/UPC

EVERBLAST

Nozzle Liner Material

Bore Size Filter

Thread type Filter

SKU UDLB-7BA

Available on backorder

Add to wishlist Add to compare
SKU: UDLB-7BA Category: Tag:

Description

CARBIDE BLAST CLEANING NOZZLE WITH A VENTURI SHAPED TUNGSTEN CARBIDE LINER AND 7/16″ BORE .  THIS TOUGH TUNGSTEN CARBIDE SANDBLASTING NOZZLE HAS A 1″ ENTRY . ITS  JACKET  HAS AN EZ GRIP THERMOPLASTIC DESIGN, COMPLIMENTED WITH WEAR RESISTANT BRASS ALLOY THREADS.  LOOKING FOR A LARGER BORE? TAKE A LOOK AT OUR UDLB-8BA TUNGSTEN CARBIDE BLAST CLEANING NOZZLE WITH ITS 1/2″ BORE.

MODEL: UDLB-7BA USES GASKET/WASHER NW-1514.

THREADS: 1-1/4″ NPSM

Model

Part number Bore inch / mm
Entry inch / mm
Length inch/mm
  UDLB-7BA 926014 7/16″/11.00 MM     1″ / 25.4 mm 7-3/4″/ 196.85MM







Nozzle types:

Sinterbide provides a wide range of application specific, carbide blast cleaning nozzles.  Some of which include Venturi style Abrasive Blast Nozzles, Double Venturi Blast Nozzles, Water Jet Blast Nozzles, Straight bore Nozzles, Tough Tungsten Carbide Sandblasting Nozzle, Long lasting Boron Carbide Sandblasting Nozzle, Light weight Silicon carbide & Silicon Nitride Blast Nozzles.

Applications:

Abrasive Blast cleaning nozzles are used world-wide for sandblasting, some surface preparation applications include those found on: Steel ships, bridges, cars, buildings, monuments, swimming pools etc. The Sandblasting process prepares surfaces for painting etc. by removing paint, rust, oxidation residue and other contaminants. On steel surfaces especially, sand blasting abrasives are carefully chosen for the specific surface profile needed. Once selected this abrasive will be used to sandblast the steel surface to give optimum surface profile for paint coating to adhere to.

Everblast designs, assembles, quality checks & ships all products from its facility near Chicago USA.

Additional information

Weight 3 lbs
Dimensions 9 × 3 × 3 in
UNSPC

Brand/UPC

EVERBLAST

Nozzle Liner Material

Bore Size Filter

Thread type Filter

SKU UDLB-7BA
