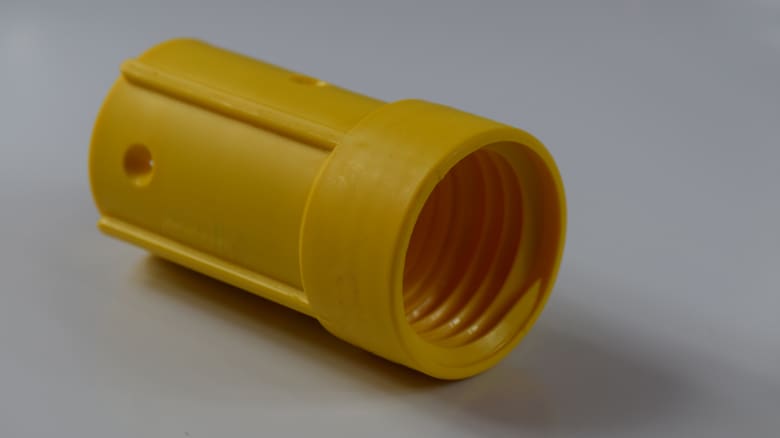

Nozzle Holder NHP-1 Contractor threads

$14.54

Plastic nozzle holder with contractor/coarse female threads – works with all industry standard nozzles with contractor threads. Coarse threads are also known as 50mm or 2″ threads.

Weight 0.5 lbs
Dimensions 6 × 6 × 6 in
UNSPC

SKU 04106-Q1

Available on backorder

Add to wishlist Add to compare
SKU: 04106-Q1 Category: Tag:

Description

Nozzle holder NHP-1 with contractor or coarse threaded nozzles.

Nozzle holder NHP-1 fits blast cleaning hose with 1-1/2″ O.D.  and 3/4″ I.D.  Holder fits nozzles with coarse or contractor threads e.g. XLBC-550.

Specs:

Model NHP-1

part number: 04106

Threads: 2″ Contractor

Fits: Hose O.D. 1-1/2″



Sandblasting Nozzle Threads:

Sand blasting nozzles are available with several thread specifications.

1-1/4″ NPSM straight threads.

2″ UNC or 50 mm threads.3/4″ NPSM threads. These are found on smaller nozzles for cabinet and spot blasting. These are straight threads not tapered.

There are some manufacturers who sell equipment with NPT tapered threads. Please note these are tapered threads and are not widely used in blast cleaning industry. You should be careful if you are using equipment with tapered threads that you match with nozzles with tapered threads.  If you have nozzle holders with tapered threads you may be limited in your choice of replacement nozzles. Fortunately most of the major manufacturers of blasting equipment use NPSM straight threads on their nozzle holders. By far the most number of nozzles available are made with NPSM threads.
