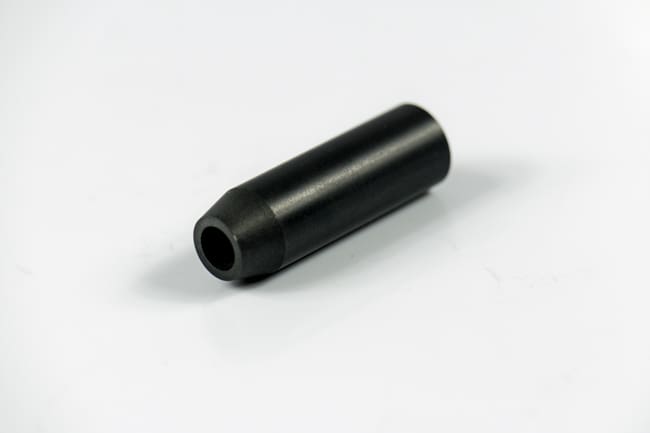

Boron carbide insert BCI-SB35-4


Boron carbide Insert, straight 1/4″ bore  1/2″ O.D. With tapered OD on exit.

Weight 0.4 lbs
Dimensions 2 × 1 × 1 in



Available on backorder

Add to wishlist Add to compare


boron carbide insert  3/16″ bore for siphon style blast cleaning guns.

Boron carbide insert  replacement  with 1/2″ O.D. for Siphon style blast cleaning guns. Light duty siphon blasters are used to remove old paint, rust, oxidation, graffiti, most deposits caused by exposure to weather on outside surfaces.  If you need a smallre bore carbide insert  see our BCI-SB35-3

Light duty suction style blasters can be used in: Auto workshops, cleaning machinery, glass etching, monument work and restoration. Boron carbide nozzles can last up to 25 times longer or more than a ceramic nozzle when used with expendable abrasives.


Model: BCI-SB35-4

part No. 60042-4

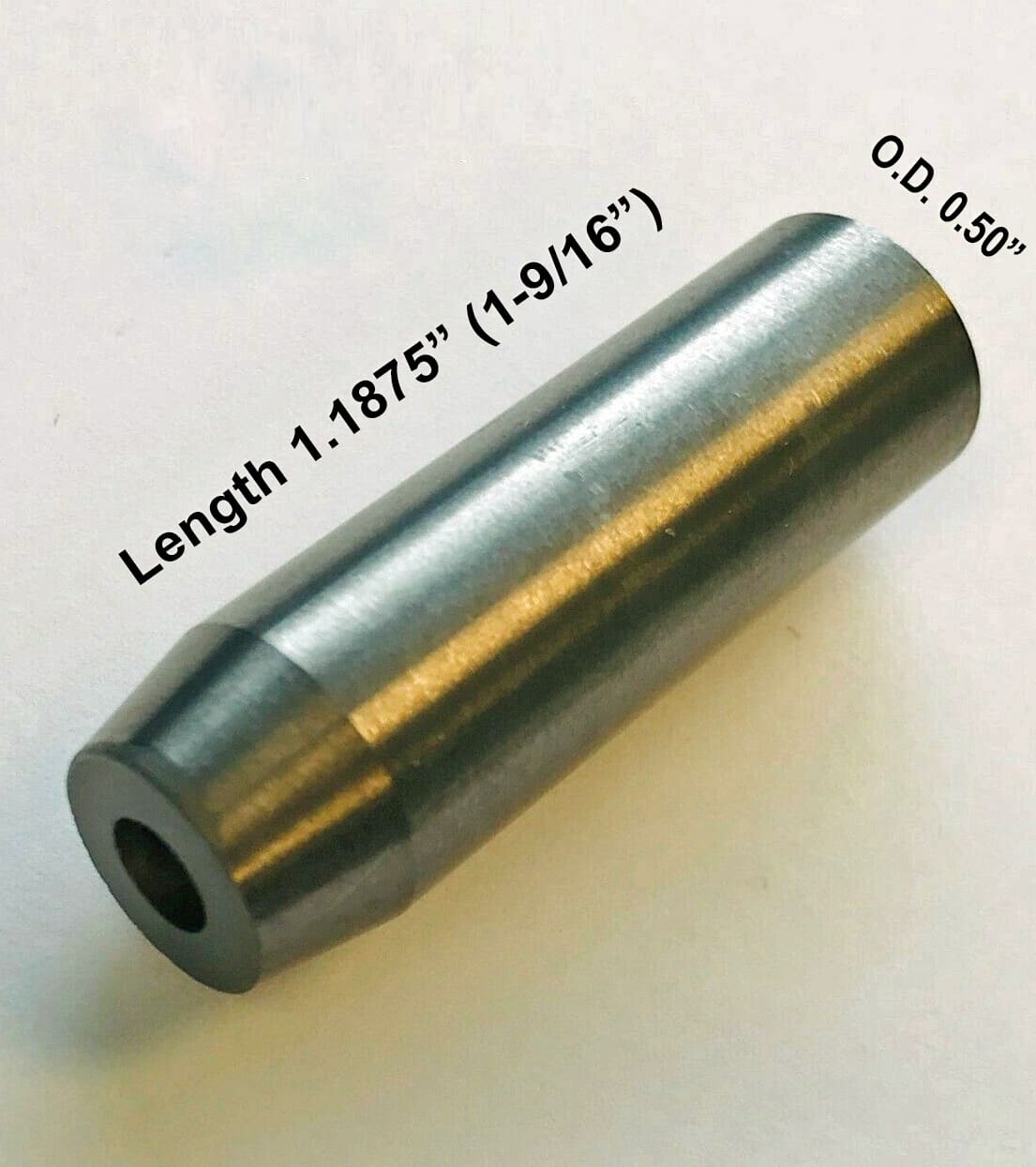

Length: 1.19″

Bore: 1/4″

O.D. 0.50″


Boron Carbide facts.

Boron Carbide is one of the hardest material available. Harder than Alumina or Silicon Carbide. To put this in perspective it is only behind Diamonds and Cubic boron nitride in hardness.

All Everblast XLBC sandblasting Nozzles are constructed with a Boron carbide liner.   Everblast’s XLBC nozzles wear longer over a broader range of abrasives than for example, Silicon Nitride, Silicon carbide and their derivatives.

Key Properties:

  • Low Density
  • High Hardness
  • High abrasive wear resistance – Excellent for blast cleaning nozzles.
  • Good Chemical resistance.
  • Light Weight


Some examples of use:

  1. Nuclear Industry as a Neutron absorber.
  2. Ballistic armor…Body armor.
  3. Ceramic Tooling Dies.
  4. Cutting tools.
  5. Blast CleaningThe high hardness of boron carbide means this material has excellent abrasive wear resistance.  Some applications include nozzles for slurry pumping, blast cleaning and water jet cutters.


Wear resistant ranking. 5 being the least and 1 being the best.
