Cabinet nozzle EVBC-5F44 – Boron carbide 5/16″ Bore

Price Each : $89.00

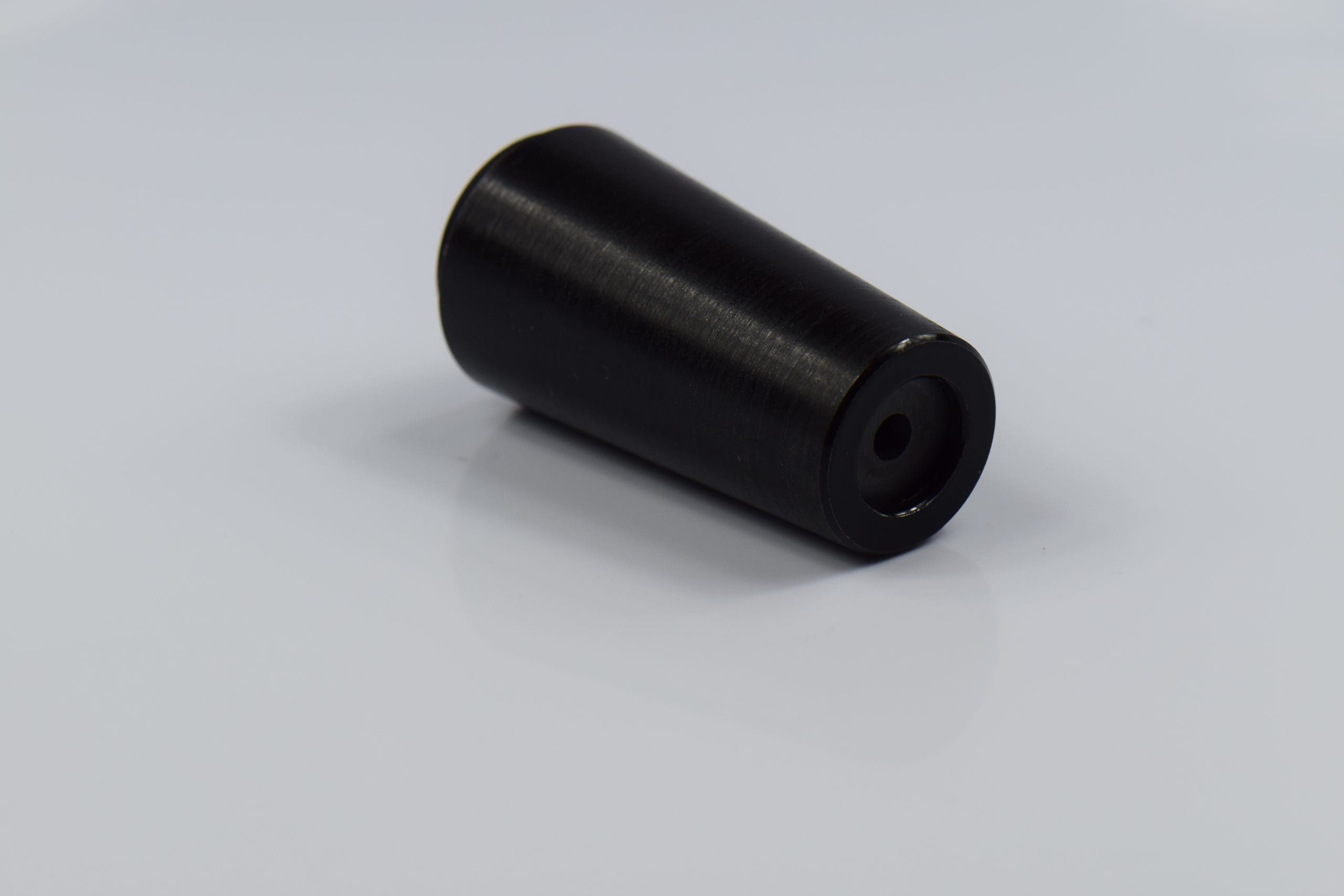

Cabinet nozzle EVBC-5F44 with tapered steel jacket and straight 5/16″ bore, boron carbide liner. Used for close up blast cleaning, typically in cabinets.  Boron carbide can be used with aluminum oxide abrasive.

Weight 0.56 lbs
Dimensions 3 × 2 × 2 in
SKU 754022

5 in stock (can be backordered)

Add to wishlist Add to compare

Description

Cabinet nozzle EVBC-5F44, Boron carbide, for close up blast cleaning

Cabinet nozzle EVBC-5F44 is a boron carbide lined blast cleaning nozzle for close up sandblasting.   This 5/16″ straight bore nozzle has a cone/tapered shaped steel jacket that fits blast cleaning guns which use a locking ring to secure nozzle in position.

These tapered nozzles are available with a choice of carbide liners, tungsten carbide for less aggressive abrasives and boron carbide for abrasives like Aluminum oxide. Looking for a tungsten carbide version of this nozzle then take a look at our EVTC-5F44

We offer an extensive range of quality short, straight bore carbide nozzles and inserts for close up sandblasting in sand blasting cabinets or spot cleaning for example in automotive applications.  These nozzles are fitted with 3/4″ NPSM fine threads please take a look at our UT range.

Specs:

Model: EVBC-5F44

Sku: 754022

Bore: 5/16″

Liner: Boron carbide

Shape: Tapered/Cone

Washer: NW34

Replaces part numbers: (B5S2-H/1506050), (502052).

Part Number Model Number Length Bore inch Bore mm O.D. at bottom of jkt O.D. at top of jacket
754020 EVBC-3F44 2″ / 50.80 mm 3/16 4.80 1.12″ / 28.5 mm 0.925″ / 23.50mm
754021 EVBC-4F44 2″ / 50.80 mm 1/4 6.35 1.12″ / 28.5 mm 0.925″ / 23.50mm
754022 EVBC-5F44 2″ / 50.80 mm 5/16 8.00 1.12″ / 28.5 mm 0.925″ / 23.50mm
