Fan Nozzle for Blast Cleaning 19/32″ Wide

Price Each : $479.00

Fan Nozzle for blast cleaning.  Is a short light weight (7 oz) fan nozzle, specially designed for close up blast cleaning applications e.g. as found in Cabinet blast cleaning. Our Fan nozzle has a flatter and wider blast pattern than a standard short straight bore of short venturi nozzle and has similar air needs as a # 3 nozzle.   Fan dimensions 19/32″” Wide  X 3/16″ high.  This is starting fan size and abrasives stream will have a small  flair out from this dimension.

Weight .5 lbs
Dimensions 3.40 × 1.12 × 1.12 in
color

Silver

Nozzle Liner Material

Model

FAN-515-34

Threads

3/4" NPSM

SKU 10040515

Available on backorder

Add to wishlist Add to compare
SKU: 10040515 Category:

Description

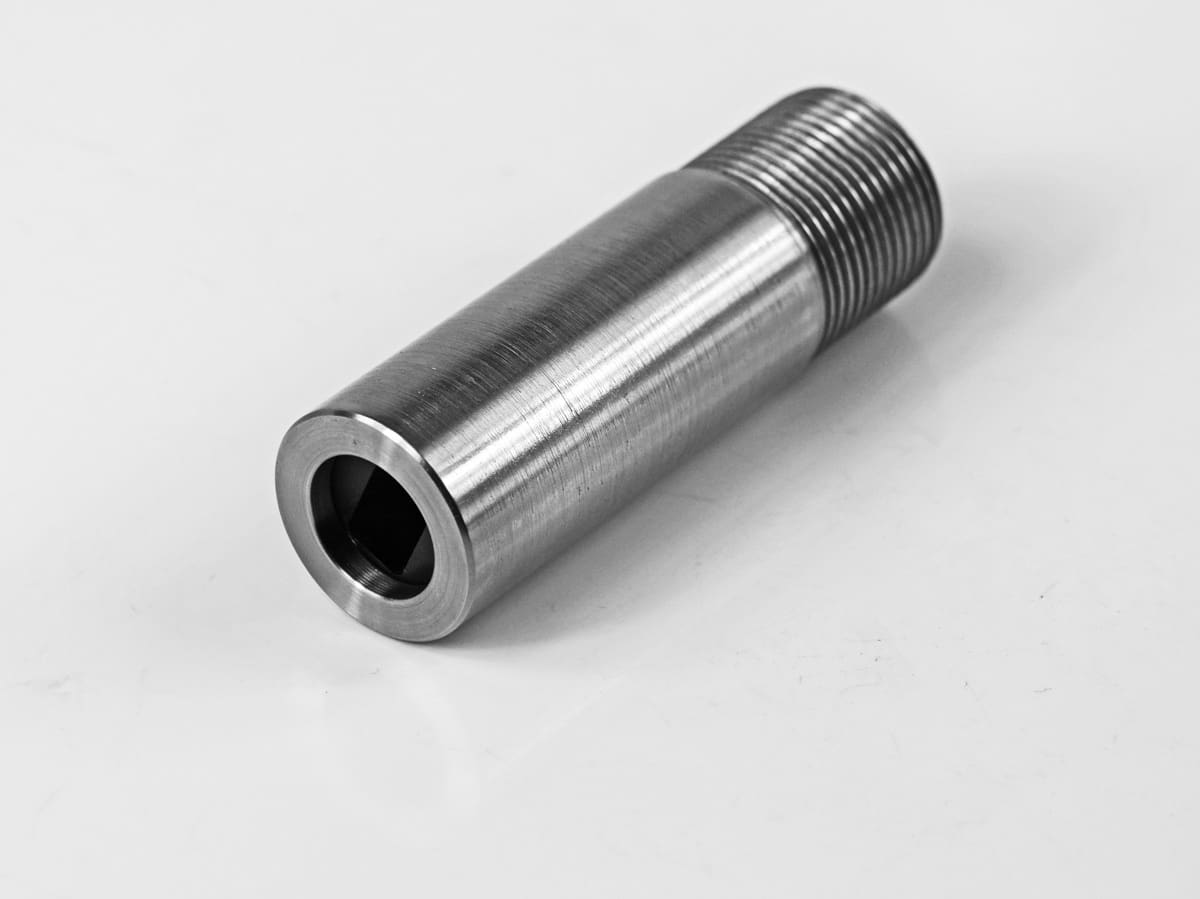

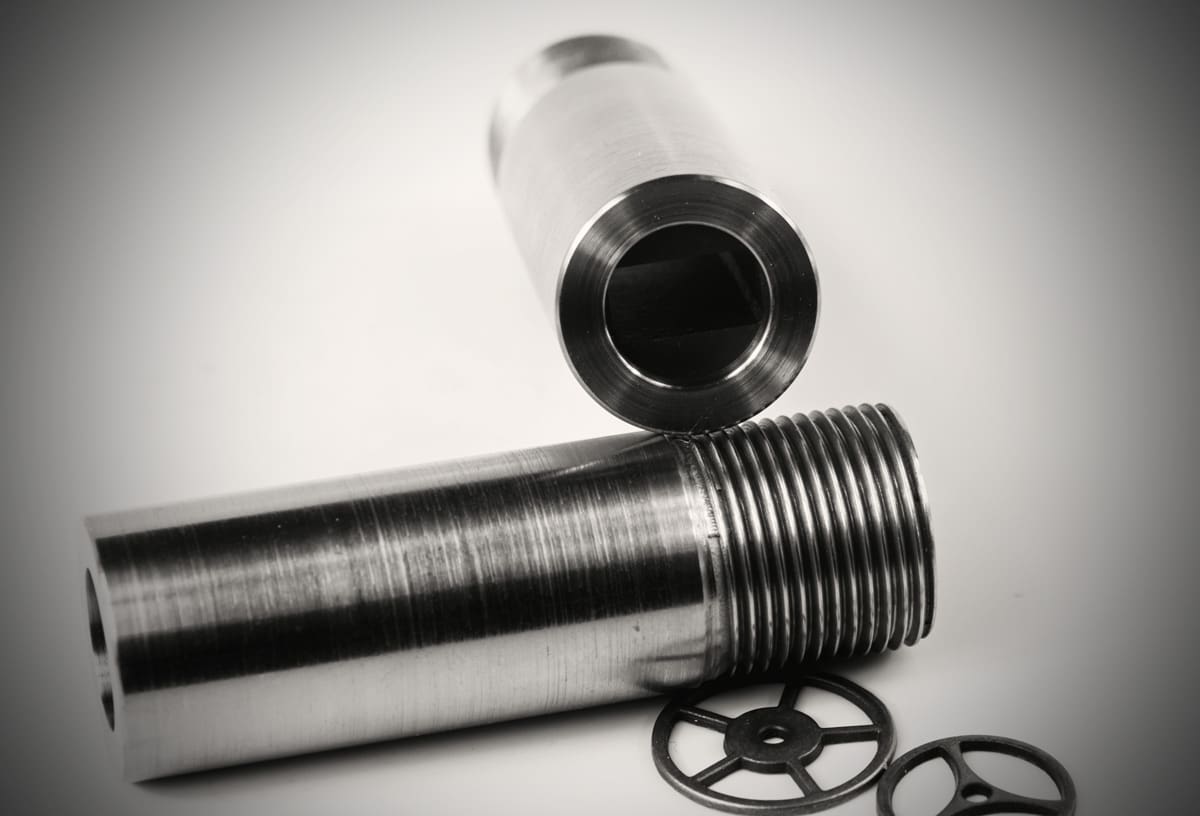

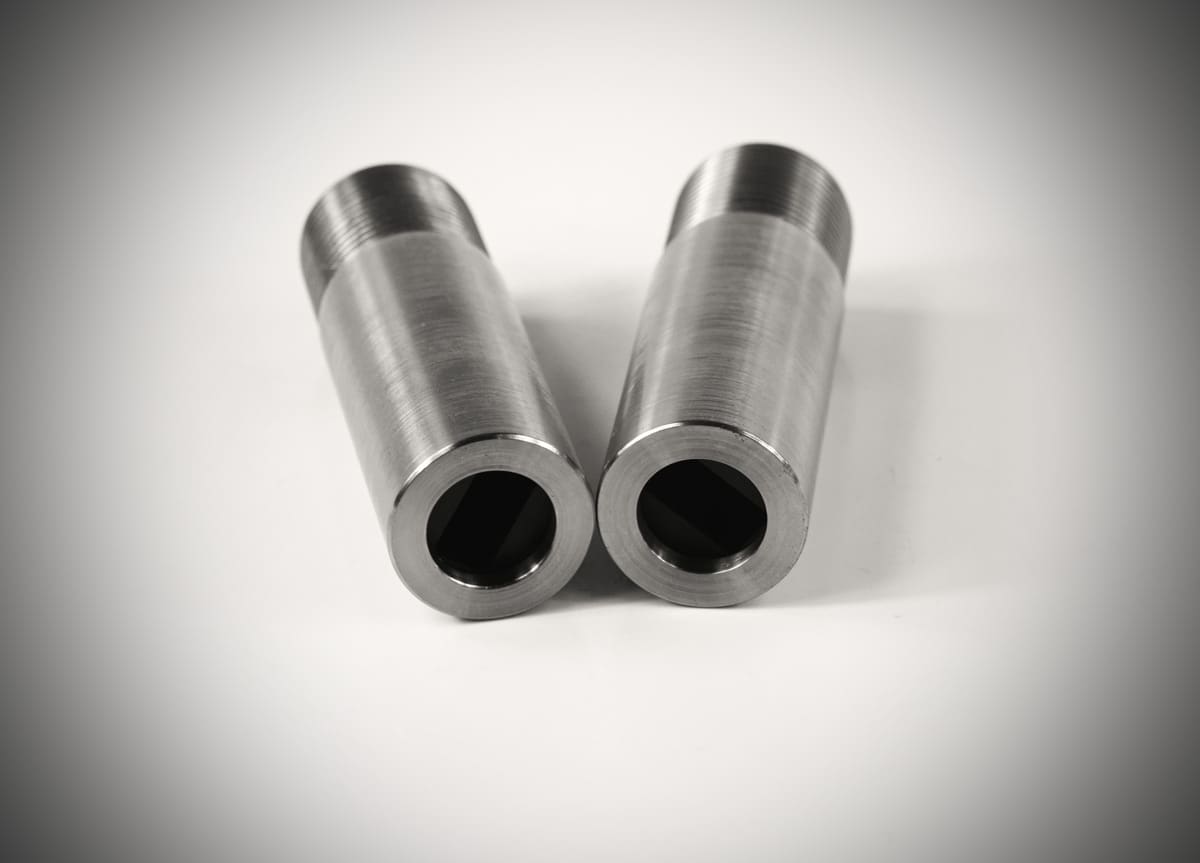

Boron carbide Fan Nozzle (Closed style):

Fan Nozzle for blast cleaning a wider blast pattern when close-up blasting. Our compact fan nozzle with a 19/32″ wide fan is an especially useful tool for blast cleaning small flat surface parts in workshop or blast cabinets applications.  Fan nozzles produce a wider rectangular shaped blast pattern than a standard round exit nozzle.

Features:

  • Light weight
  • Armored Jacket
  • Boron carbide liner
  • 3/4″ NPSM threads
  • Similar air consumption as a # 3 nozzle
  • Wide spray

Our Boron carbide fan nozzles are supplied with an armored steel jacket &  are supplied with industry standard ¾” NPSM threads.  Can be used to blast clean with a wide variety of abrasives including aggressive aluminum oxide!  Similar air requirements as a # 3 standard blast nozzle.

Alternative fan nozzles with 1-1/4″ threads:

If you are looking for a larger fan nozzle with 1-1/4″ NPSM threads then see our open style fan nozzles.

Fan Nozzles
Fan nozzles for close up blast cleaning e.g. cabinet work.
Model: FAN-515-34
Width:  15 mm / 19/32″/0.59″
Fan Height:    5 mm / 3/16″ /0.22″
Fan Size Sq. inches:   0.59 X 0.22″ = 0.13 sq. inches
Length: 3.4″
Threads: 3/4″ NPSM
Air Consumption: Similar to # 3 nozzle



Additional information

Weight .5 lbs
Dimensions 3.40 × 1.12 × 1.12 in
color

Silver

Nozzle Liner Material

Model

FAN-515-34

Threads

3/4" NPSM

SKU 10040515
