Tungsten carbide insert TCI-6E. Bore 5/16

$45.00

Tungsten carbide insert TCI-6E With flange,  3/8″ bore and 7/8 O.D.



Weight 0.37 lbs
Dimensions 2 × 2 × 2 in
UNSPC

Nozzle Liner Material

Bore Size Filter

Delivery time

SKU TCI-6E

Available on backorder

Add to wishlist Add to compare

Description

Tungsten carbide insert TCI-6E.  Bore 3/8

Tungsten carbide insert TCI-6E is designed to fit into a number of popular sandblasting cabinet guns & suction guns. It has an O.D. of 7/8″ (22.2mm).  It features a straight bore with tight blast pattern for spot cleaning on small parts and a flange for locking into a gun with that type of locking system.

Tungsten carbide being a tough wear resisting material, is well suited for use in blasting guns since a part of the nozzle is exposed.  Offering toughness coupled with a longer life than either ceramics or steel it is a great choice for many blast cleaning set ups. Available in the most widely used bore sizes,  ranging from 1/4″ to 1/2″.   Using aluminum oxide abrasive then take a look at our Boron Carbide equivalent BCI-6E

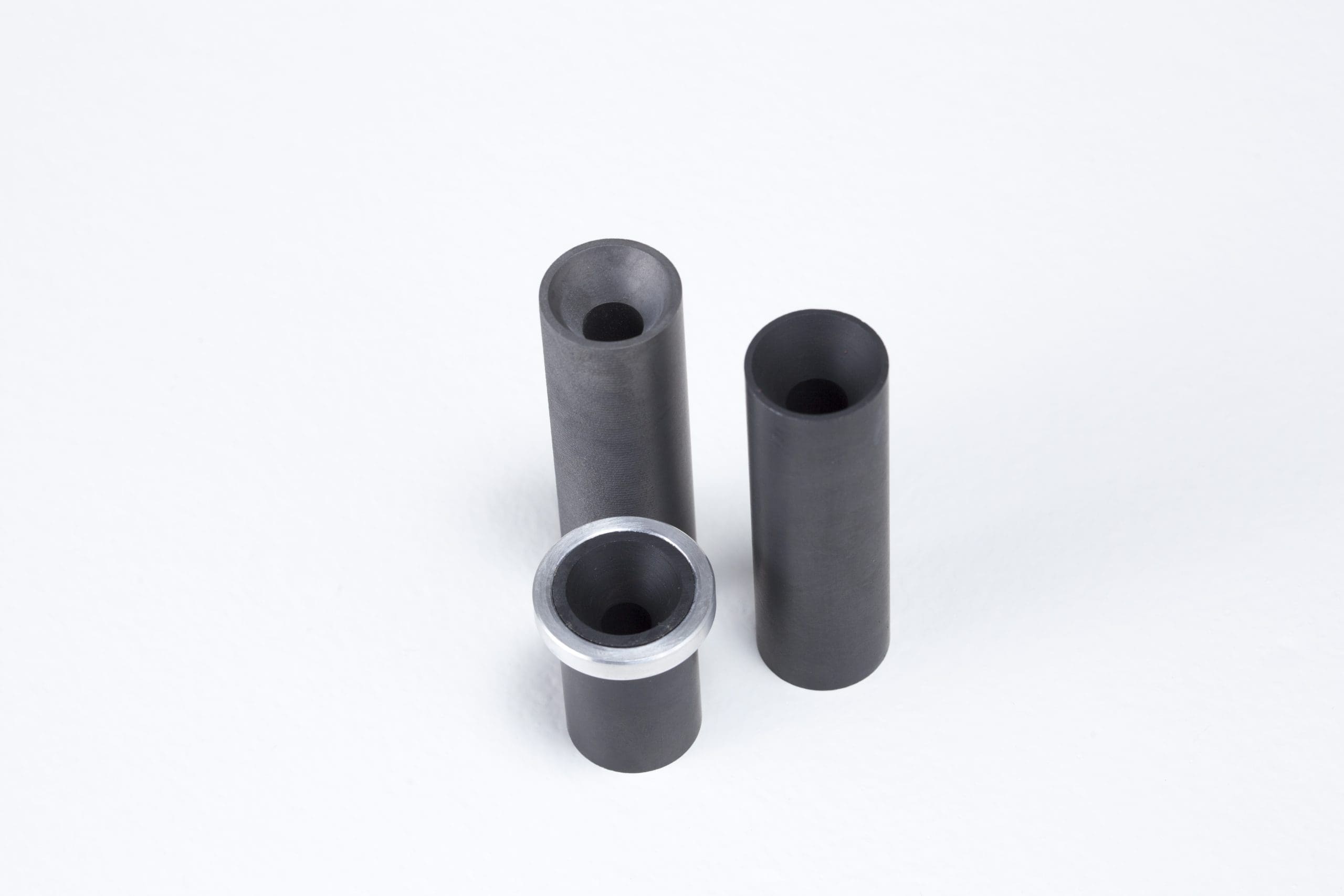

There is also available the same insert but without a Flange fitting  TCI-6

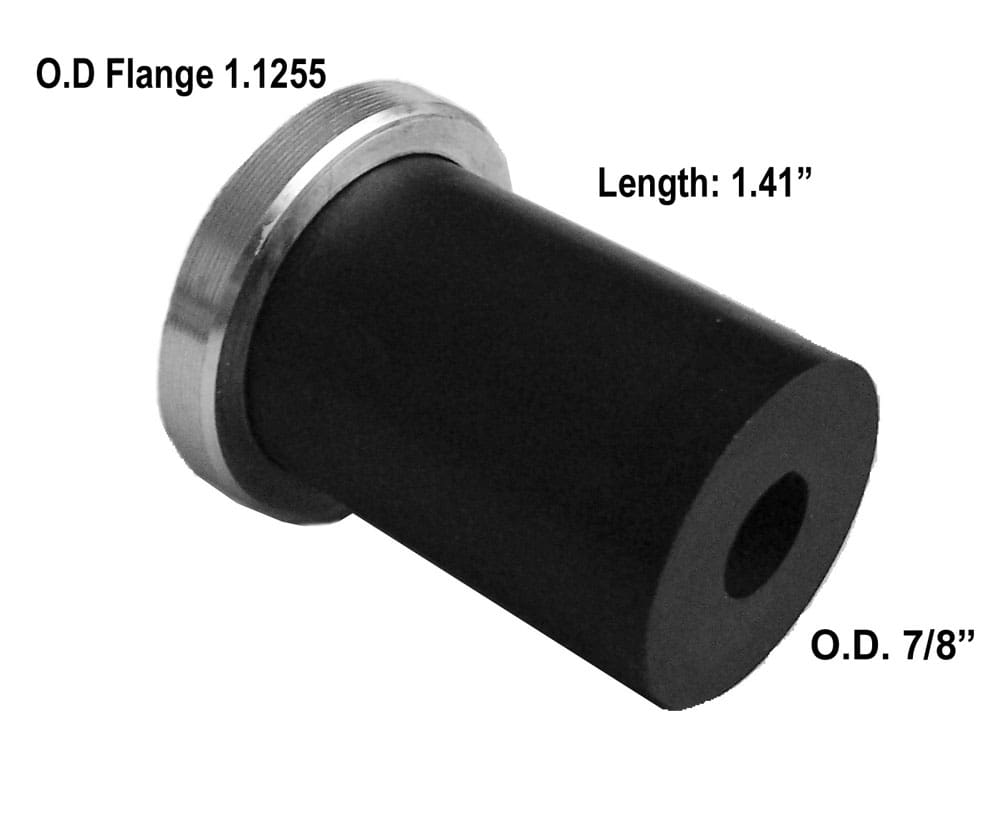

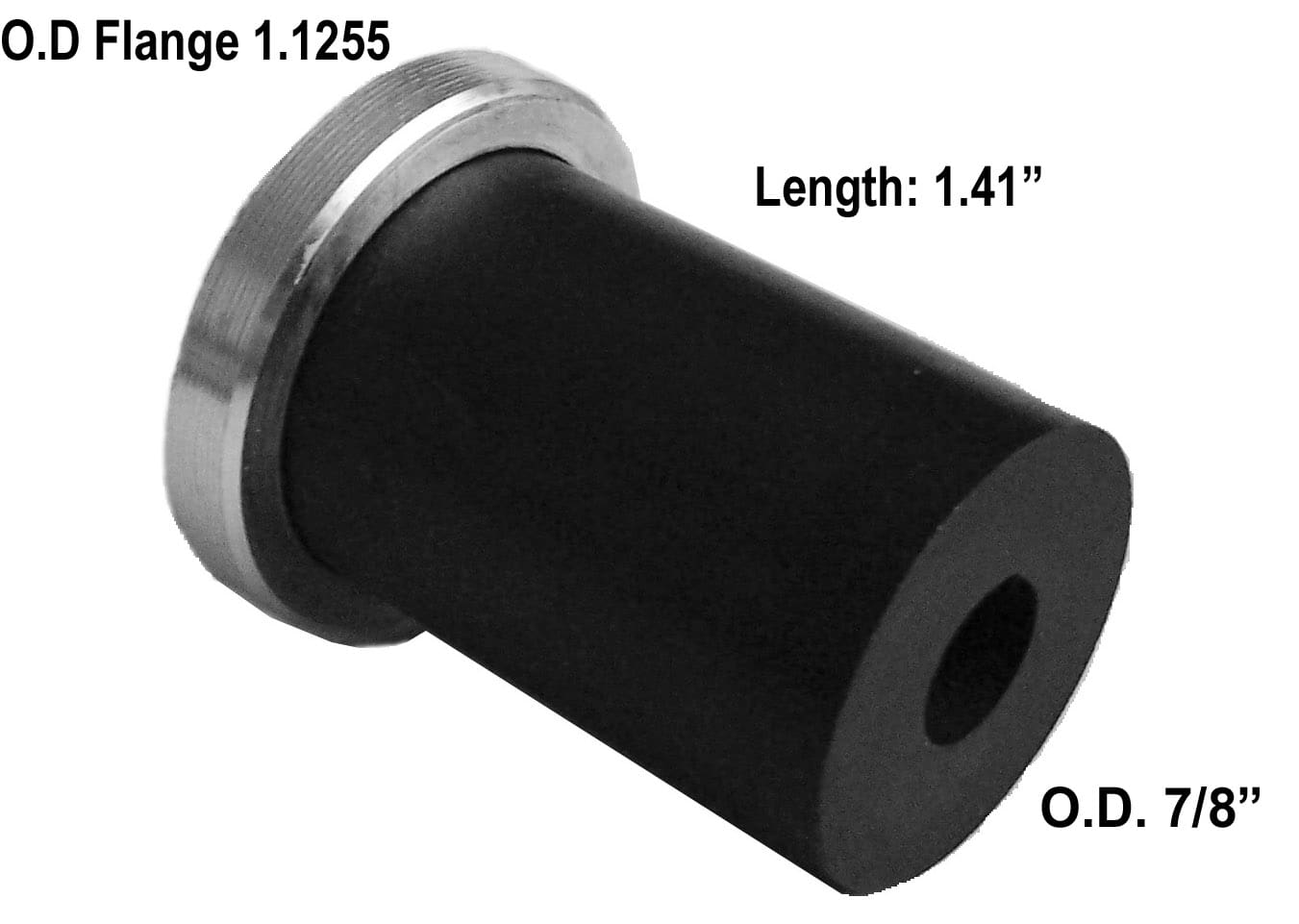

Specs:

Model: TCI-6E

Sku: 60012

Length: 1.41″

Bore: 3/8″ straight.

Material: Tungsten carbide

O.D. 7/8″ over carbide

O.D.  1-1/8″ over flange:
