HomeShopShort stubby blast cleaning NozzlesUDSV-8 venturi sandblasting nozzle – short

UDSV-8 venturi sandblasting nozzle – short

Price Each : $73.00

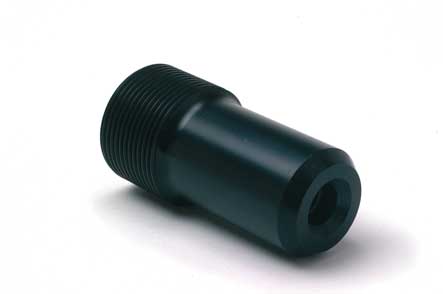

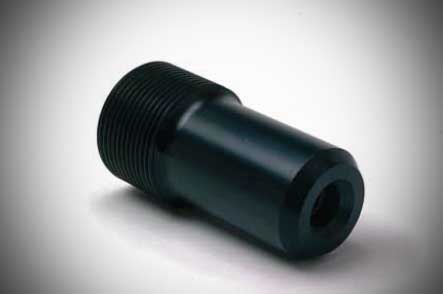

Tungsten carbide venturi nozzle, short length, with 1″ entry. Thermoplastic jacket and 1-1/4″ threads. 1/2″ bore.

Weight 0.75 lbs
Dimensions 4 × 3 × 3 in
UNSPC

SKU 756006

12 in stock (can be backordered)

Add to wishlist Add to compare
SKU: 756006 Category:

Description

DESCRIPTION:

this tough  short length nozzle incorporates a 1/2″ bore venturi . supplied complete with a TOUGH engineered THERMOPLASTIC JACKET with industry standard 1-1/4″ NPSM male THREADS, for use with a standard 1-1/4″ npsm female threaded nozzle holder..

Model No. Part No. Length inches Length mm Bore inches Bore mm Entry Washer
UDSV-8 756006 3-1/4″ 82.55 1/2″ 12.75 1″ NW-1514

Shorter than a standard length venturi 1/2″ bore nozzle, UDSV nozzles can be used in applications where there is a space restriction e.g. for close up blasting of parts in a cabinet or locations where the length of a standard long venturi nozzle, will make it difficult to perform blast cleaning work.




Additional information

Weight 0.75 lbs
Dimensions 4 × 3 × 3 in
UNSPC

SKU 756006
