UDSV-6 venturi sandblasting nozzle – short

$98.00

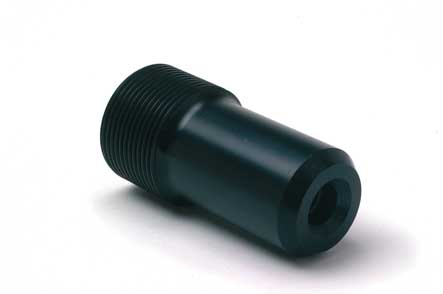

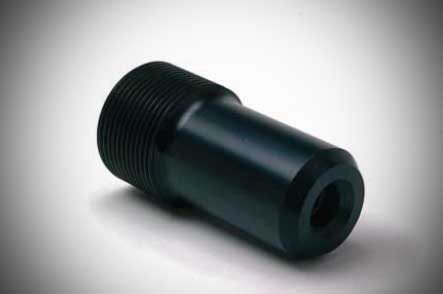

Tungsten carbide venturi nozzle, short style, with 1″ entry. Thermoplastic jacket and 1-1/4″ threads. 3/8″ bore

Weight 0.75 lbs
Dimensions 4 × 3 × 3 in
UNSPC

Brand
SKU UDSV-6

Available on backorder

Add to wishlist Add to compare
SKU: UDSV-6 Category: Tag:

Description

DESCRIPTION:

this tough  short length nozzle incorporates a 3/8″ bore venturi . supplied complete with a TOUGH engineered THERMOPLASTIC JACKET with industry standard 1-1/4″ NPSM male THREADS, for use with a standard 1-1/4″ npsm female threaded nozzle holder..

Model No. Part No. Length inches Length mm Bore inches Bore mm Entry Washer
UDSV-6 756004 3-1/4″ 82.55 3/8″ 9.50 mm 1″ NW-1514

Shorter than a standard length venturi 3/8″ bore nozzle, UDSV nozzles can be used in applications where there is a space restriction e.g. for close up blasting of parts in a cabinet or locations where the length of a standard long venturi nozzle, will make it difficult to perform blast cleaning work.
