Cabinet Nozzle ATV-4-BC

Price Each : $170.00

Cabinet Nozzle ATV-4-BC  is a high performance medium length, Boron carbide nozzle with a 1/4″ bore.  Fitted with an armored aluminum jacket and 3/4″ fine threads.

Weight 0.65 lbs
Dimensions 4 × 1 × 1 in
Nozzle Liner Material

Nozzle Style Filter

Bore Size Filter

Thread type Filter

Jacket style Filter

SKU 3241176

5 in stock (can be backordered)

Add to wishlist Add to compare

Frequently bought together

  • Aluminum Nozzle Holder 3/4" threads CHE-1/2
    Price Each : $11.99
Buy selected for
$11.99
Add all to cart

Description

Cabinet Nozzle ATV-4-BC High performance medium length grit blasting nozzles.

Cabinet Nozzle ATV-4-BC is a  1/4″ bore, Boron carbide, medium length (4 inch long) high performance venturi nozzle. Fitted with an armored aluminum jacket and 3/4″ NPSM threads it is an excellent choice for blast cleaning in cabinets or similar applications.  The ATV-4-BC  nozzle blasts faster than a  # 4 short straight bore nozzle. Reason for this higher performance is that it incorporates a venturi style tungsten carbide liner.  This design increases velocity &  productivity.  Cabinet nozzle ATV-4-BC, with its increased exit velocity can increases cleaning rate when compared with a   #4 short straight bore nozzle.  ATV-4-BC with its improved blast cleaning performance is a great option.

Applications:

Short nozzles are used for close up grit blasting of small parts in cabinet or workshop blast cleaning.  workshop applications include automotive, machine shops, product finishing shops.  Recommended for use with aluminum oxide type abrasives.  If less aggressive abrasives are being used we suggest looking at our ATV-4-TC.  This nozzle has same specs as the ATV-4-BC but uses a Tungsten carbide liner.

Boron carbide has a longer wear life across all abrasives when compared with a nozzle using a tungsten carbide liner.

For less aggressive blast cleaning and a narrower blast pattern  look at the ut-4 straight bore nozzle.

Specifications:

Model: ATV-4-BC

Part No: 3241176

Liner: Boron Carbide

Length: 4″

Bore: 1/4″

Entry: 1/2″

Nozzle Washer: NW-34







Additional information

Weight 0.65 lbs
Dimensions 4 × 1 × 1 in
Nozzle Liner Material

Nozzle Style Filter

Bore Size Filter

Thread type Filter

Jacket style Filter

SKU 3241176

Compare with similar items

  • Cabinet Nozzle ATV-4-BC

    Product title

    More details
    Customer rating
    Price
    Unit
    Nozzle Liner Material
    Nozzle Style Filter
    Bore Size Filter
    Thread type Filter
    Jacket style Filter
    Delivery time
    Feature Product
    Cross Reference
    UNSPC
  • Cabinet Nozzle ATV-4-BC

    Cabinet Nozzle ATV-4-BC

    More details
    n/a
    $170
    lbs
    Boron Carbide
    Short length Venturi
    1/4" (6.35 mm)
    Fine threads -3/4”
    Armored jckt. & threads
    1-2 days
    No
    -
    -

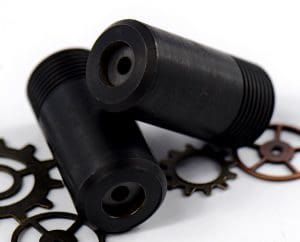

  • Boron carbide Nozzle -UTBC-3

    Boron carbide Nozzle -UTBC-3

    More details
    n/a
    $75
    lbs
    Boron Carbide
    Inserts for Cabinets and GunsLong straight BoreShort Straight bore
    3/16" (4.80 mm)
    Fine threads -3/4”
    Armored jckt. & threads
    1-2 days
    No
    CTB-3, 21091, 1348-113, B3S2-G, 1505032, 31616T4, B-11-3
    40141731
  • Boron carbide  # 3L Short

    Boron carbide # 3L Short

    More details
    n/a
    $82
    lbs
    Boron Carbide
    Inserts for Cabinets and GunsLong straight BoreShort Straight bore
    3/16" (4.80 mm)
    Fine threads -3/4”
    Armored jckt. & threads
    1-2 days
    No
    CTB-3, 21092, B3S2-G, 2940220
    -
