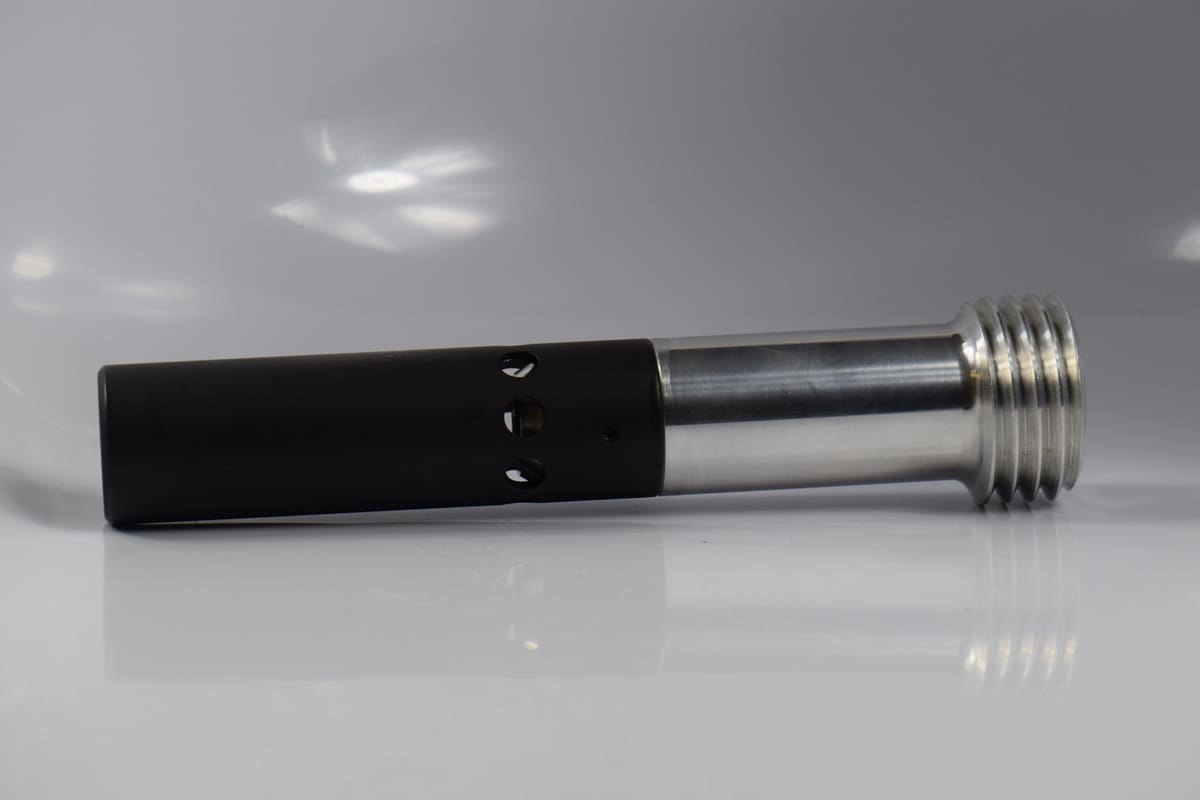

Double Venturi Nozzle #6

$239.00

Double Venturi Nozzle #6 for sandblasting with softer abrasives, gives a wider blast patters at lower impact velocity than a standard nozzle.

Weight 3 lbs
Dimensions 8 × 3 × 3 in
SKU UDV-6

Available on backorder

Add to wishlist Add to compare
SKU: UDV-6 Category: Tag:

Description

Double Venturi Nozzle #6, Tungsten carbide, 3/8″ bore.  Suggested for blast cleaning with softer abrasives e.g. Bicarb of soda, plastic, Pumice etc.  This nozzle gives a wider blast pattern with abrasive impacting surface at a lower velocity than a comparable # 6 venturi nozzle. Not recommended for use with aggressive abrasives like those incorporating aluminum oxide. An alternative for this nozzle giving a tighter blast pattern at a lower velocity than a venturi # 6 is our straight bore # 6, part number: UDLB-6BA-ST.

Applications for a Double venturi nozzle #6 could be those that do not need a high impact speed like softer masonry surfaces, wood , aluminum etc.

Bicarb of Soda Abrasive:

A Soft surface and environmentally friendly abrasive. Fractures on impact into micro sized particles that clean surface without damaging substrate. Excellent for cleaning softer surfaces. Can be used for graffiti removal, stone and building cleaning. Industrial machinery cleaning – on site.

Specs:

Model: UDV-6

Liner: Tungsten carbide

Bore: 3/8″

Threads: 1-1/4″ NPSM

Entry: 1″



Model Part Number Length Entry Bore
UDV-4 724200 5-1/2″ ( 139.70 mm) 1″  (25 mm) 1/4″ (6.35 mm)
UDV-5 724201 6-1/2″ (165.10 mm) 1″  (25 mm) 5/16″ (8.00 mm)
UDV-6 724202 7″ (177.80 mm) 1″  (25 mm) 3/8″ (9.50 mm)
UDV-7 724203 8-1/2″ (215.90 mm) 1″  (25 mm) 7/16″ (11.00 mm)
UDV-8 724204 9-1/4″” (234.95 mm) 1″  (25 mm) 1/2″ (12.75 m

Additional information

Weight 3 lbs
Dimensions 8 × 3 × 3 in
SKU UDV-6
