Cabinet Nozzle ATV-3-BC

$170.00

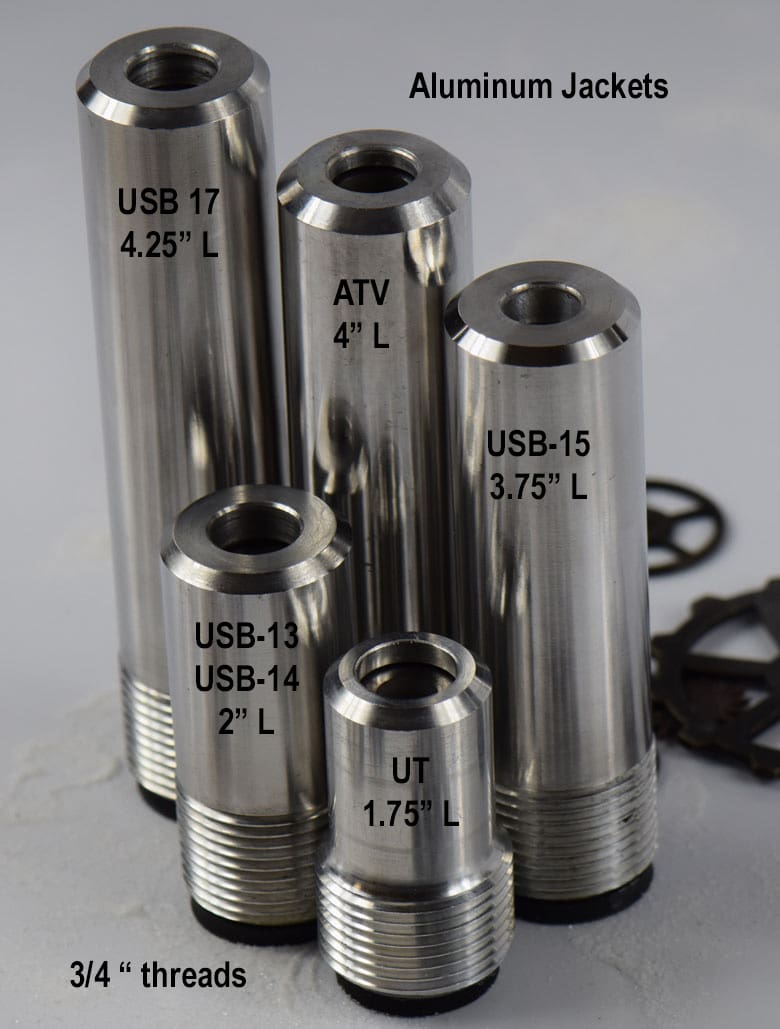

High performance medium length Boron carbide # 3 venturi nozzle.  This nozzle has an aluminum jacket and 3/4″ fine threads.

Weight 0.65 lbs
Dimensions 4 × 1 × 1 in
UNSPC

SKU 3241177-1
Add to wishlist Add to compare

Frequently bought together

  • Aluminum Nozzle Holder 3/4" threads CHE-1/2
    $22.00
Buy selected for
$22
Add all to cart

Description

High performance medium length grit blasting nozzles.

cabinet nozzle ATV-3-BC has a 3/16″ bore. This boron carbide, medium length (4″) higher performance venturi nozzle with an aluminum jacket and 3/4″ npsm threads.  the ATV-3-BC improves on performance of a  # 3 short straight bore boron carbide nozzle by having a venturi design.  This design increases velocity &  productivity.  cabinet nozzle atv-3-BC, with its increased exit velocity can increases cleaning rate when compared with a   #3 short straight bore nozzle.  ATV-3-BC with its improved blast cleaning performance, is a great option.



Applications:

short nozzles are used for close up grit blasting of small parts in cabinet or workshop blast cleaning.  workshop applications include automotive, machine shops, product finishing shops. recommended for use with aluminum oxide type abrasives. if aluminum oxide is not being used we suggest using our atv-3-tc.  this nozzle  is available at a lower cost than boron carbide. atv-3-tc has same specs as the atv-3-bc but uses a tungsten caride liner. boron carbide has a longer wear life across all abrasives, when compared with a nozzle using a tungsten carbide liner.

Optional Blast cleaning Nozzle

 for less aggressive blast cleaning, using aluminum oxide, look at the UTBC-3

Specifications:

Model: ATV-3-BC

Part No: 3241178

Length: 4″

Bore: 3/16″

Entry: 1/2″

Nozzle Washer: NW-34







Additional information

Weight 0.65 lbs
Dimensions 4 × 1 × 1 in
UNSPC

SKU 3241177-1

Compare with similar items

  • Cabinet Nozzle ATV-3-BC

    Product title

    More details
    Customer rating
    Price
    UNSPC
    Unit
    Nozzle Liner Material
    Nozzle Style Filter
    Bore Size Filter
    Thread type Filter
    Jacket style Filter
    Delivery time
    Feature Product
    Cross Reference
  • Cabinet Nozzle ATV-3-BC

    Cabinet Nozzle ATV-3-BC

    More details
    n/a
    $170
    40141731
    lbs
    Tungsten Carbide
    Short length Venturi
    3/16" (4.80 mm)
    Fine threads -3/4”
    Armored jckt. & threads
    1-2 days
    No
    -
  • Boron carbide Nozzle -UTBC-3

    Boron carbide Nozzle -UTBC-3

    More details
    n/a
    $82
    40141731
    lbs
    Boron Carbide
    Inserts for Cabinets and GunsLong straight BoreShort Straight bore
    3/16" (4.80 mm)
    Fine threads -3/4”
    Armored jckt. & threads
    1-2 days
    No
    CTB-3, 21091, 1348-113, B3S2-G, 1505032, 31616T4, B-11-3
  • Boron carbide  # 3L Short

    Boron carbide # 3L Short

    More details
    n/a
    $186
    -
    lbs
    Boron Carbide
    Inserts for Cabinets and GunsLong straight BoreShort Straight bore
    3/16" (4.80 mm)
    Fine threads -3/4”
    Armored jckt. & threads
    1-2 days
    No
    CTB-3, 21092, B3S2-G, 2940220
