Description
DESCRIPTION:

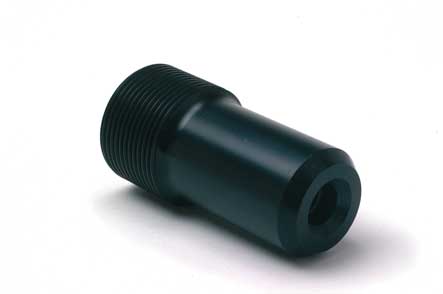

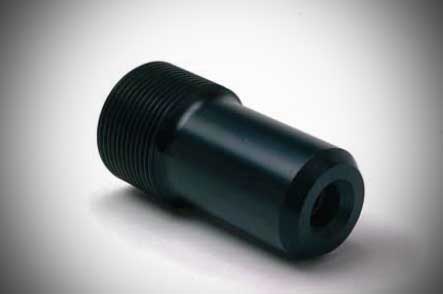

this tough short length nozzle incorporates a 1/4″ bore venturi . supplied complete with a TOUGH engineered THERMOPLASTIC JACKET with industry standard 1-1/4″ NPSM male THREADS, for use with a standard 1-1/4″ npsm female threaded nozzle holder..
| Model No. | Part No. | Length inches | Length mm | Bore inches | Bore mm | Entry | Washer |
| UDSV-4 | 756002 | 3-1/4″ | 82.55 | 1/4″ | 6.35 mm | 1″ | NW-1514 |
Shorter than a standard length venturi 1/4″ bore nozzle, UDSV nozzles can be used in applications where there is a space restriction e.g. for close up blasting of parts in a cabinet or locations where the length of a standard long venturi nozzle, will make it difficult to perform blast cleaning work.
Additional information
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 4 × 3 × 3 in |
| UNSPC | |
| SKU | 756002 |
