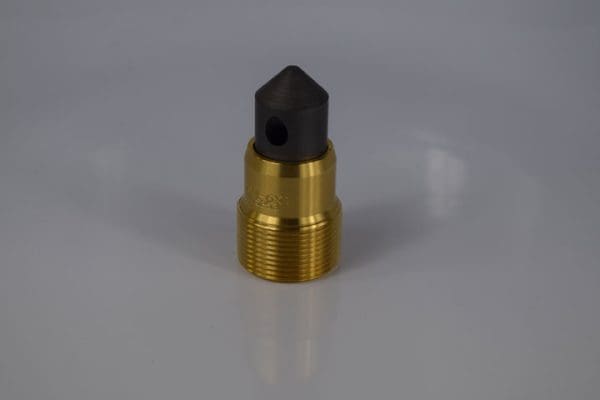

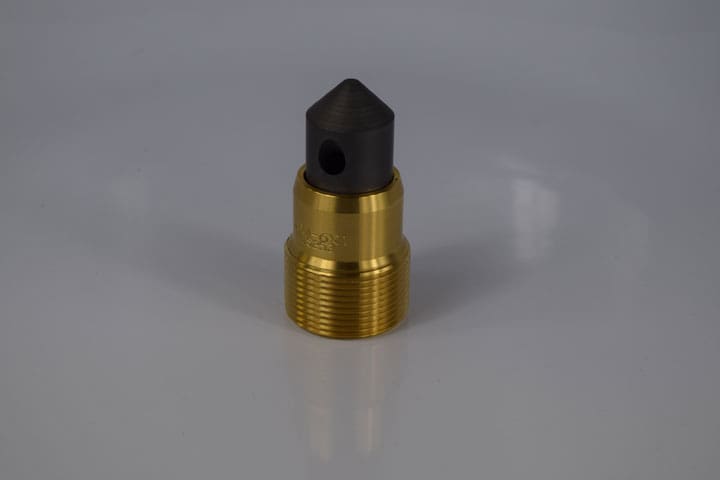

Angle Nozzle UAM-2X3

$204.00

angle nozzle UAM-2X3, Tungsten carbide liner, 45 degree, three (3) 1/8″ bore outlets, angle nozzle. Brass jacket with 1-1/4″ fine threads

Weight 1.00 lbs
Dimensions 3 × 2 × 2 in
UNSPC

Country of Manufacture

USA

Nozzle Liner Material

Nozzle Style Filter

Bore Size Filter

Thread type Filter

SKU UAM-2X3

Available on backorder

Add to wishlist Add to compare
SKU: UAM-2X3 Category: Tag:

Description

angle nozzle UAM-2X3 – with three (3) 1/8″ Bore outlets- Brass Jacket with 1-1/4″ NPSM fine threads.

angle nozzle UAM-2X3 is part of a family of angle nozzles that are a useful to have in your sandblasting tool collection. They are useful for blast cleaning is difficult to reach areas such as angles on bridge structures, inside pipes and between steel plates. This nozzle is fitted with contractor threads that need a compatible nozzle holder.  See Everblast’s full range of angle nozzles here.

 Specs:

Liner: Tungsten Carbide

Outlets: 3

Bore: 1/8″

Threads: 1-1/4″ NPSM Fine

Jacket:Brass

Washer: NW-3820

Tungsten Carbide angle nozzles for sandblasting are available with one, two or three exit ports. Generally, the two and three port angle nozzles are used for blast cleaning inside tubes or U-shaped forms, where abrasive can only be aimed at side walls with an angle nozzle. Another area where carbide angle nozzles are useful is in getting behind angles on bridge work. Some jobs may need a combination of nozzles to reach inside tight angles or partially enclosed areas. Angle Nozzles are available with forward shooting exit ports at approx. 45 degrees, sideways shooting at 90 degrees and reverse angle nozzles with a port that shoots abrasive at approx. 135 degrees. Another useful tool for cleaning hard to reach areas is the Curvo Blast  nozzle. Our curved nozzle is unique, in that it incorporates a single piece curved carbide liner.





Additional information

Weight 1.00 lbs
Dimensions 3 × 2 × 2 in
UNSPC

Country of Manufacture

USA

Nozzle Liner Material

Nozzle Style Filter

Bore Size Filter

Thread type Filter

SKU UAM-2X3
