Narrow Angle Nozzle : EVMB-MAC4-14XL

Price Each : $214.00

Narrow Angle nozzle is a versatile and useful 1/4″ bore abrasive blast cleaning tool.  Features a 14″ long lance to target abrasive on to walls of  narrow cavities.   Use with a nozzle holder with industry standard 3/4″ female NPSM threads.

Weight 0.82 lbs
Dimensions 15 × 2 × 2 in
UNSPC

SKU 3241093

2 in stock (can be backordered)

Add to wishlist Add to compare

Description

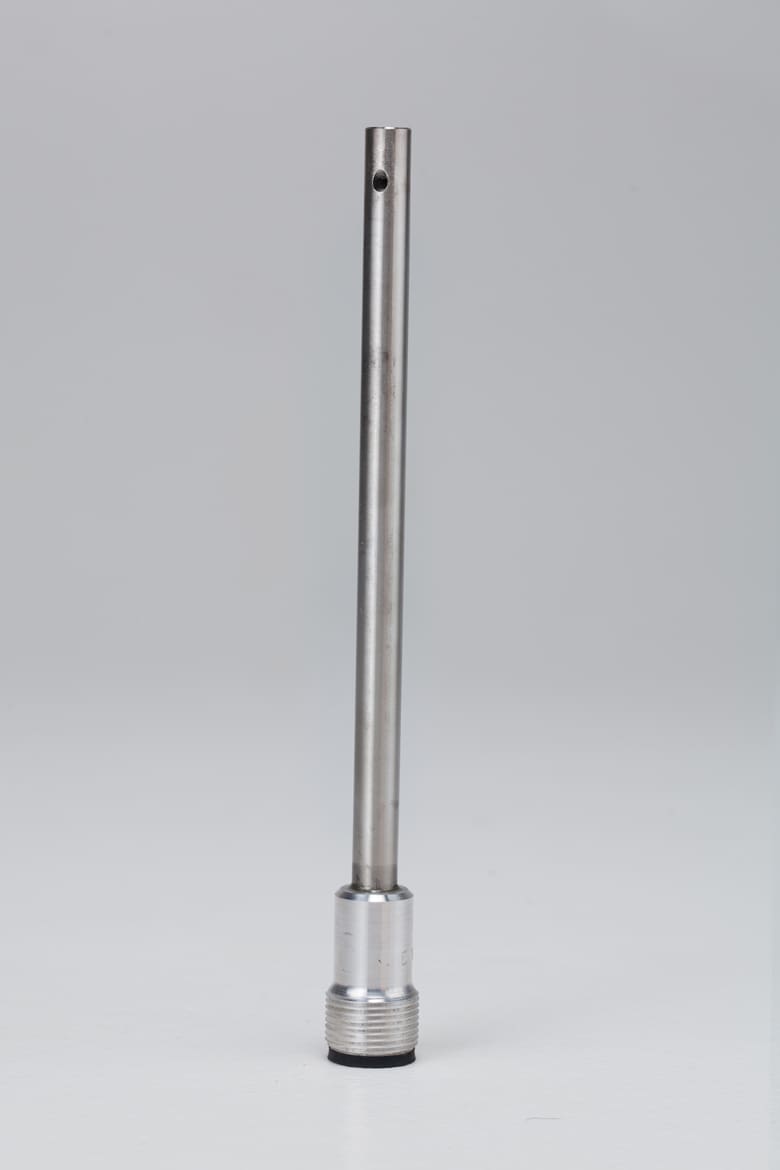

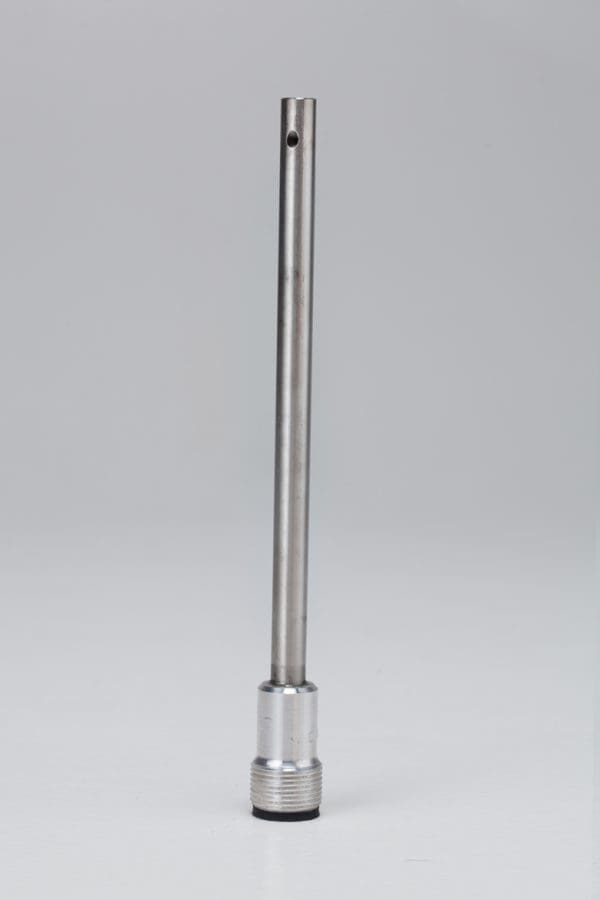

Narrow angle nozzle

Narrow angle nozzle with 1/2″ OD and clear working length of 14″.  This lance style blast cleaning tool has a single,  carbide  lined, forward shooting exit port  with 1/4″ bore.   Narrow angle nozzle is designed to target abrasive on to walls of narrow cavities.  blast nozzle has 3/4″ NPSM threads for fitting into nozzle holder with industry standard 3/4″ female NPSM threads.

ADDITIONAL LENGTH LANCES AVAILABLE: 10″ and 20″ length.
FOR STANDARD SHORT STYLE, BLAST CLEANING, ANGLE NOZZLES PLEASE TAKE A LOOK  AT uam-4×1-mini series.

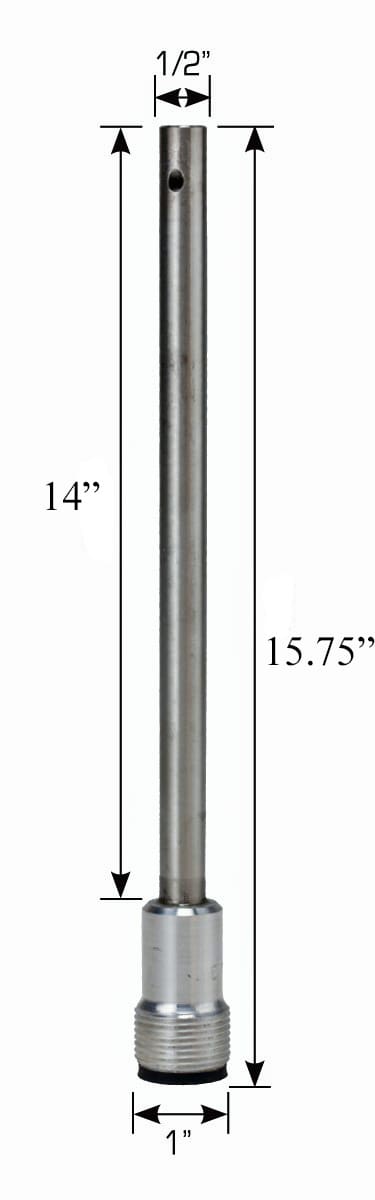

Specs:

Model No. EVMB-MAC4-14XL

Part No. 3241093

Length: 14″

Bore: 1/4″

Lance O.D. 1/2″

Tungsten Carbide angle nozzles for sandblasting are available with one, two or three exit ports.  two and three port angle nozzles are used for blast cleaning inside tubes or U-shaped forms, where abrasive can only be aimed at side walls with an angle nozzle. Another area where carbide angle nozzles are useful is in getting behind angles on bridge work. Some jobs may need a combination of nozzles to reach inside tight angles or partially enclosed areas. Angle Nozzles are available with forward shooting exit ports at approx. 45 degrees, sideways shooting at 90 degrees and reverse angle nozzles with a port that shoots abrasive at approx. 135 degrees. Another useful tool for cleaning hard to reach areas is the Curvo Blast  nozzle. Our curved nozzle is unique, in that it incorporates a single piece curved carbide liner.



Additional information

Weight 0.82 lbs
Dimensions 15 × 2 × 2 in
UNSPC

SKU 3241093
